| Function
characteristic: |
| Based
on infrared technology automatic control
product, when some people enter the switch
induces the scope, the special-purpose
sensor surveys the human body infrared
spectrum the change, outputs the high
level automatically, the human does not
leave the induction scope, continually
will output the high level; After the
human leaves, switch time delay automatic
shut-off load.The sensitivity is high,
reliable, widely applies in each kind
of auto-induction electric appliance equipment. |
| Delay
time:Also may act according to
customer request making to order, making
to order scope zero several seconds to
30 minutes. |
| Ultra
low power loss:Switch own power
loss< 0.00005W. |
| Wide
voltage design:120-240VAC |
| Has
the induction blocking time: The
induction module (high level turns low
level) after each induction output, may
follow close on is establishing a blocking
time section, the inductor does not accept
any induction signal in this time compartment.This
function may realize “the induction output
time” and “the blocking time” both gap
work, may apply in the gap survey product;
Simultaneously this function may effectively
suppress each kind of disturbance which
in the load cut process produces.(This
time may establish in zero several seconds
- several dozens seconds) |
| Triggering
way:May trigger continuously, cannot
trigger continuously. (May jump line choice) |
| Electrical
parameter: |
| Induction
way |
Passive
form |
Working
voltage |
120-240VAC |
| Induction
principle |
Human body
infrared |
Biggest power
loss |
<0.00005W |
Induction
distance |
5 meters |
Output way |
High level/low
level |
Induction
angle |
140 degrees
coning angles |
Load scope |
|
The light
controls the induction |
5LUX-500LUX
(adjustable) (standard controls
function without light) |
Ambient
temperature |
-20℃—+50℃ |
|
| Applicable
scope: |
|
Each kind of electric appliance functions
and so on automatic control, simultaneously
available in security and so on uses. |

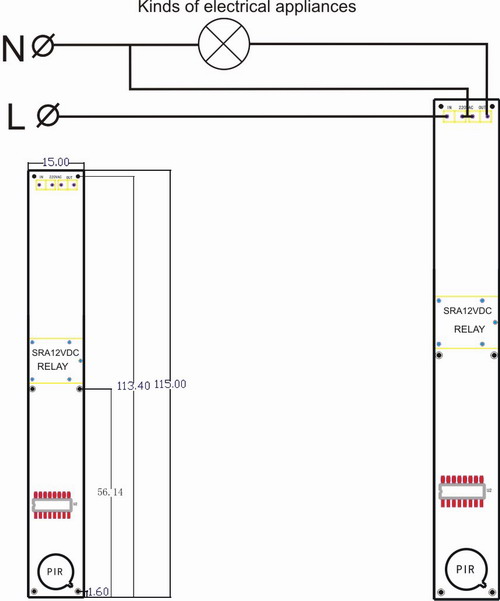

| Wiring graphical
representation: |
|
|
| Induction
scope graphical representation: |
(Wall installs graphical
representation) |
 |
 (Attracts
goes against installs graphical
representation)
|
|
